Our company has established strategic cooperative partnerships with many large-scale domestic and overseas iron and steel enterprises; the H13 mandrel semi-finished products are jointly produced, while the finished products are heat-treated (quenched and tempered) by our company using heat treatment furnaces. As per customer’s requirements, a high-performance material welding layer can be added to the surface of the H13 mandrel, which can extend the service life of the mandrel and thus greatly save the rolling cost.

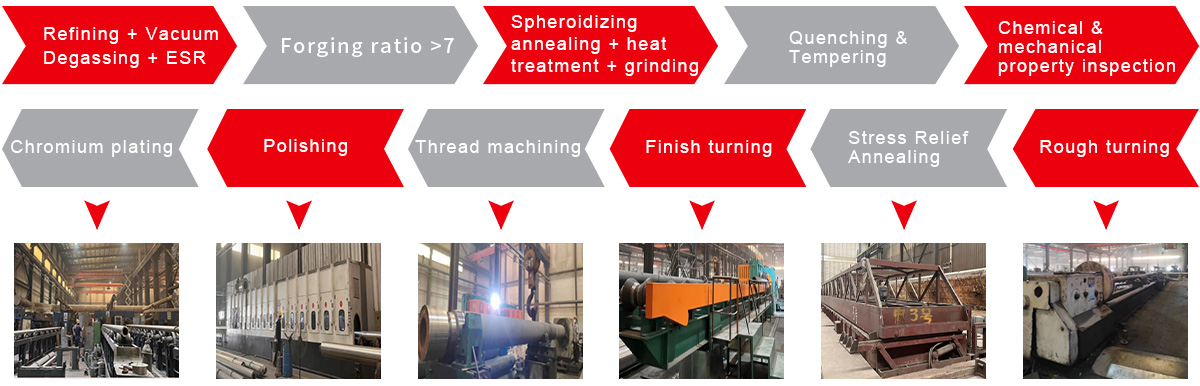

Production process
Chemical composition and mechanical properties
| AISI H13(4Cr5MoSiV1) | C | And | Mn | S | P | Cr | For | In | In | H | THE |
| 0.32 | 0.80 | 0.20 | < | < | 4.75 | 1.10 | < | 0.80 | < | < | |
| 0.45 | 1.20 | 0.50 | 0.008 | 0.012 | 5.50 | 1.75 | 0.25 | 1.20 | 2PPm | 20PPm | |
| Size | Tensile properties (MPa) | Yield strength (MPa) | Elongation (%) | Reduced area (%) | Impact value (J) | Hardness (HRC) | |||||
| <200mm | 1127-1274 | >931 | >8 | >25 | >20 | 60-62 | |||||
| >200mm | 1078-1274 | >882 | >8 | >25 | >20 | 60-62 | |||||
Our company has established strategic cooperative partnerships with many large-scale domestic and overseas iron and steel enterprises; the H13 mandrel semi-finished products are jointly produced, while the finished products are heat-treated (quenched and tempered) by our company using heat treatment furnaces. As per customer’s requirements, a high-performance material welding layer can be added to the surface of the H13 mandrel, which can extend the service life of the mandrel and thus greatly save the rolling cost.
| AISI H13(4Cr5MoSiV1) | C | And | Mn | S | P | Cr | For | In | In | H | THE |
| 0.32 | 0.80 | 0.20 | < | < | 4.75 | 1.10 | < | 0.80 | < | < | |
| 0.45 | 1.20 | 0.50 | 0.008 | 0.012 | 5.50 | 1.75 | 0.25 | 1.20 | 2PPm | 20PPm | |
| Size | Tensile properties (MPa) | Yield strength (MPa) | Elongation (%) | Reduced area (%) | Impact value (J) | Hardness (HRC) | |||||
| <200mm | 1127-1274 | >931 | >8 | >25 | >20 | 60-62 | |||||
| >200mm | 1078-1274 | >882 | >8 | >25 | >20 | 60-62 | |||||
