Tianjin Jingchengweiye Mechanical Manufacturing Co., Ltd. has established strategic partnership with many domestic and overseas large steel enterprises. HI3 mandrel semi-finished products are co-produced, but the finished products are manufactured by JCWY using controlled atmosphere heat treatment furnaces for heat treatment (Quenching&Tempering).

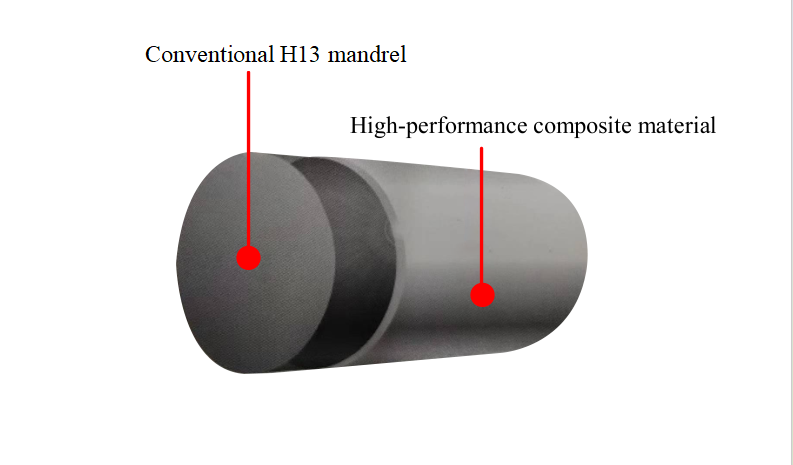

H13 mandrel surface can be added a welding layer of high performance material according to customer's requirements. It can improve the mandrel’s service life, increase repairing and re-turning times to save largely the rolling cost.
| AISI H13(4Cr5MoSiV1) | C | Si | Mn | S | P | Cr | Mo | Ni | V | H | O |
| 0.32 | 0.80 | 0.20 | ＜ | ＜ | 4.75 | 1.10 | ＜ | 0.80 | ＜ | ＜ | |
| 0.45 | 1.20 | 0.50 | 0.008 | 0.012 | 5.50 | 1.75 | 0.25 | 1.20 | 2PPm | 20PPm |
| Size | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation (%) | Reduction of Area (%) | Impact Value (J) | Hardness (HRC) |
| <200mm | 1127-1274 | >931 | ＞8 | ＞25 | ＞20 | 60-62 |
| >200mm | 1078-1274 | >882 | ＞8 | ＞25 | ＞20 | 60-62 |
